XF105 Support
FAQ and troubleshooting

XF105/XF100 Image quality (Recording mode) and recording time

Content Id: 8200975000


Recording Time

Maximum video recording times are as follows.

Memory (CF Card)Bit Rate
50Mbps (CBR)35Mbps (VBR)25Mbps (CBR)
2GB5 min.5 min.10 min.
4GB10 min.10 min.20 min.
8GB20 min.25 min.40 min.
16GB40 min.55 min.80 min.
32GB80 min.110 min.155 min.
64GB160 min.225 min.310 min.

Approximate figures based on continuous recording.

Checking the Available Recording Time

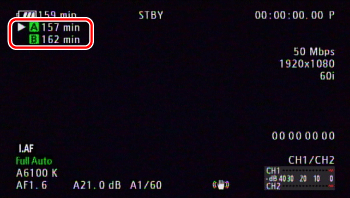

When the camcorder is in ⋖CAMERA⋗ mode, the screen indicates which CF card slot is in use and the available recording time (in minutes*) that remains on each CF card.

* The approximate available recording time is based on the current bit rate.

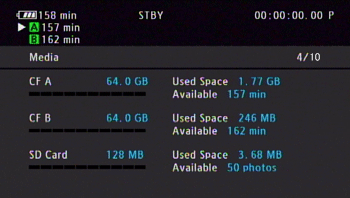

On the [Media] status screen, you can check the available recording time, total space and used space of each recording media, and the available number of photos.

After having assigned the [Status] function (which displays the status screens) to an assignable button, display the [Media] status screen by following the procedures below.

1. Press the button that has the [Status] function (which displays the status screens) assigned to it.

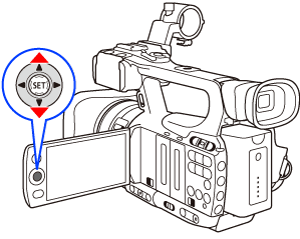

2. Push the joystick up/down to scroll through the [Media] status screens.
